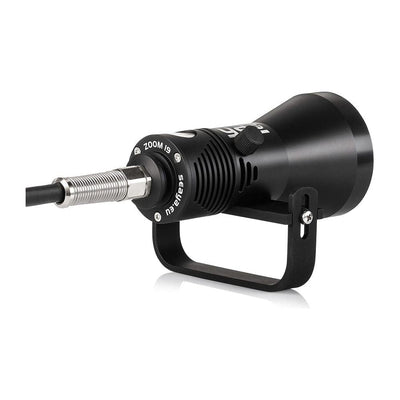

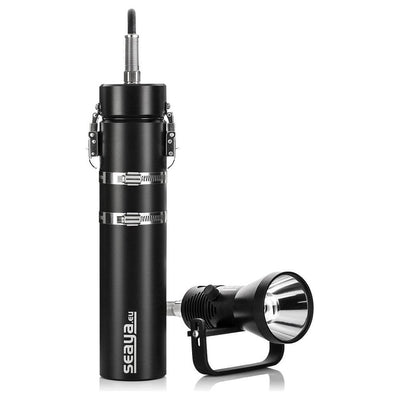

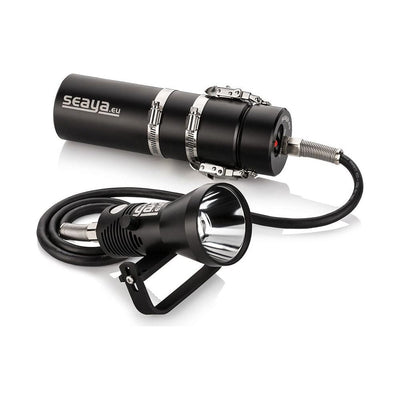

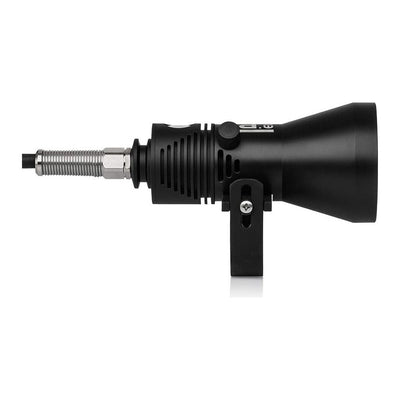

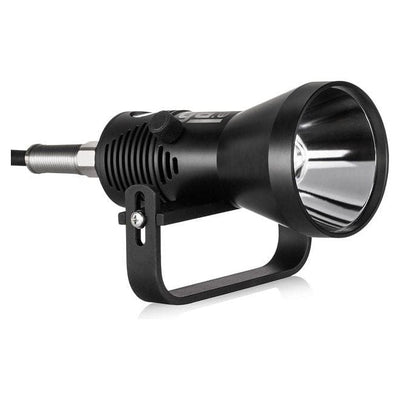

SeaYa LED 19W ZOOM with Umbilical Battery

Designed specifically for SeaYa LED 19W ZOOM electronics signals the approaching end of lamp life by automatic reduction of output power to 20% and then to 10%. It gives the user the time to safely end diving or take a decision about further progress. The above-described scheme of work provides the maximum use of the battery pack while ensuring its safe operation.

TECHNICAL DATA

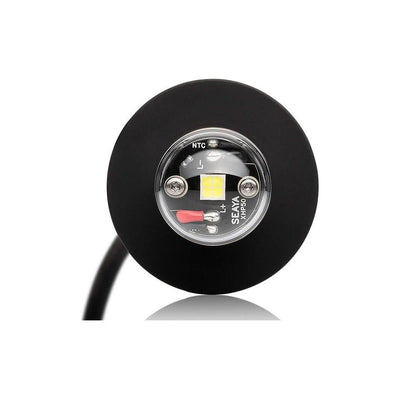

Light source:	1x CREE® XHP50
Power:	19 W
Luminance:	max. 2000 lm
Colour temperature:	5700 °K
Light distribution angle:	6°-35° + constant glow 70°
Modes:	100%-50%-20% /-OFF*
Max. operating depth:	150 m
E/O cord length:	65 cm or according to customer reqiurements
Head dimensions (length x diameter):	150 mm x 75/50 mm
Colour:	black
Made of:	anodized aluminum, Delrin®
Type of handle:	Goodman or Mini-G

POWER

Battery pack capacity	13.8 Ah	24.15 Ah	41.4 Ah
Charging time	4.5 h**	8 h**	8.5 h***
Weight on the surface	2.1 kg	2.7 kg	3.7 kg
Weight in water	0.8 kg	1.1 kg	1.5 kg

* option: additional OFF mode
** charging time for SY-CHARGLI-4A charger
*** charging time for SY-CHARGLI-6A charger
Automatic charger for Li-Ion battery packs with compartment included.

UPGRADE OPTIONS

SM Configuration
Piezo Switch
24.15Ah or 41.4Ah battery pack
Heating battery (different listing)
Color options (please ask)
E/O cables (please ask)
