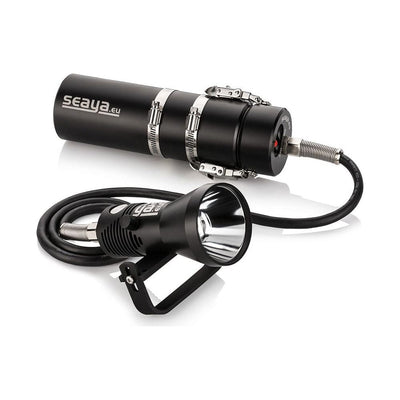

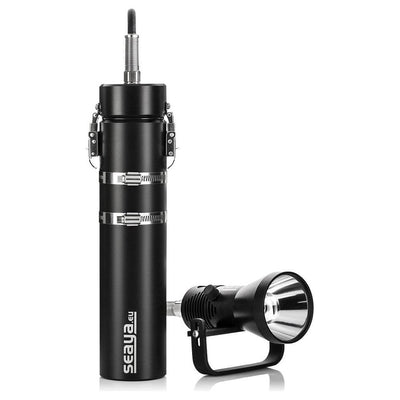

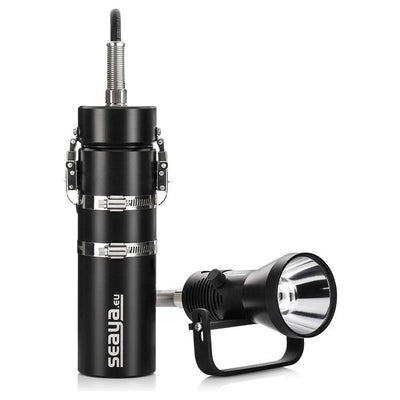

SeaYa LED 19W ZOOM with Umbilical Dual Output Battery

Designed specifically for SeaYa LED 19W ZOOM electronics signals the approaching end of lamp life by automatic reduction of output power to 20% and then to 10%. It gives the user the time to safely end diving or take a decision about further progress. The above-described scheme of work provides the maximum use of the battery pack while ensuring its safe operation.

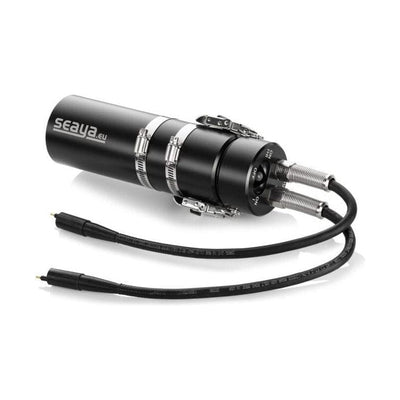

This version comes with a dual output!
Output 1 will be hard wired, while output 2 will be E/O as a default.

TECHNICAL DATA

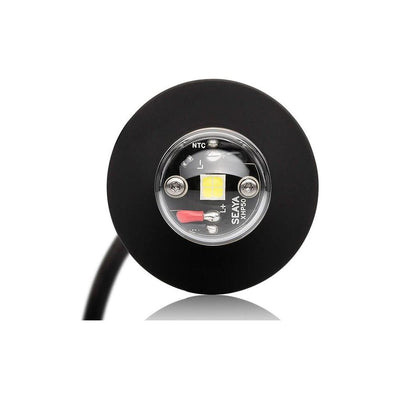

Light source:	1x CREE® XHP50
Power:	19 W
Luminance:	max. 2000 lm
Colour temperature:	5700 °K
Light distribution angle:	6°-35° + constant glow 70°
Modes:	100%-50%-20% /-OFF*
Max. operating depth:	150 m
E/O cord length:	65 cm or according to customer requirements

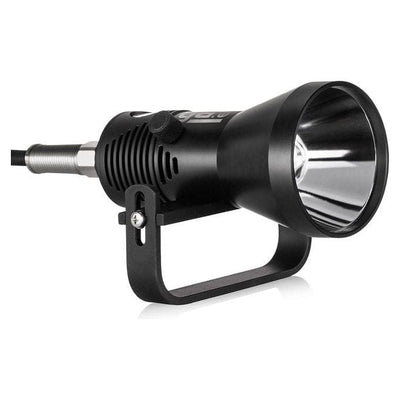

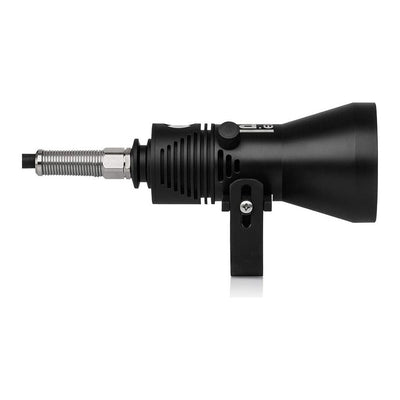

Head dimensions (length x diameter):	150 mm x 75/50 mm
Colour:	black
Made of:	anodized aluminum, Delrin®
Type of handle:	Goodman or Mini-G

POWER

Battery pack capacity	13.8 Ah	24.15 Ah	41.4 Ah
Charging time	4.5 h**	8 h**	8.5 h***
Weight on the surface	2.1 kg	2.7 kg	3.7 kg
Weight in water	0.8 kg	1.1 kg	1.5 kg

* option: additional OFF mode
** charging time for SY-CHARGLI-4A charger
*** charging time for SY-CHARGLI-6A charger
Automatic charger for Li-Ion battery packs with compartment included.

UPGRADE OPTIONS

Piezo Switch on the 41.4Ah battery (please ask)
24.15Ah or 41.4Ah battery pack
Color options (please ask)
2x E/O cables (please ask)
