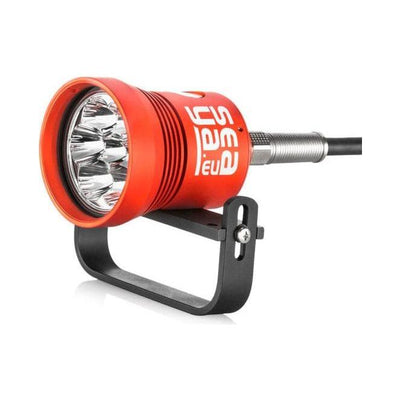

SeaYa LED 70W Narrow Spot with Umbilical Battery

Designed specifically for SeaYa LED 70W Narrow Spot electronics signals the approaching end of lamp life by automatic reduction of output power to 20% and then to 10%. It gives the user the time to safely end diving or take a decision about further progress. The above-described scheme of work provides the maximum use of the battery pack while ensuring its safe operation.

TECHNICAL DATA

Light source:	7x CREE® XP-L HI
Power:	max. 70 W
Luminance:	max. 8400 lm
Colour temperature:	5700 °K
Light distribution angle:	10°
Modes:	100%-50%-20% /-OFF*
Max. operating depth:	150 m
Head dimensions (length x diameter):	86 mm x 74/60 mm
Colour:	black, red, blue, green
Made of:	anodized aluminum
Type of handle:	Goodman or Mini-G

POWER

Battery pack capacity	13.8 Ah	24.15 Ah	41.4 Ah
Charging time	4.5 h**	8 h**	8.5 h***
Weight on the surface	2.1 kg	2.7 kg	3.7 kg
Weight in water	0.8 kg	1.1 kg	1.5 kg

* option: additional OFF mode
** charging time for SY-CHARGLI-4A charger
*** charging time for SY-CHARGLI-6A charger
Automatic charger for Li-Ion battery packs with compartment included.

UPGRADE OPTIONS

SM Configuration
Piezo Switch
24.15Ah or 41.4Ah battery pack
Heating battery (different listing)
Color options (please ask)
E/O cables (please ask)
